Nokia DLR-3 serial data cable shematics
Requirements:
- IC MAX3237
- PIC 16LC63
- Quarz 3.5864MHz
- 14x Resistor 100Ohms
- 4x Resistor 1kOhms
- Resitor 15kOhms
- Capacitor 1µF
- 4x Capacitor 100nF
- 2x Capacitor 1nF
- 2xCapacitor 15pF
- HEX file for PIC 16LC63 (Download)
- Sub-D9 plug
- mobile phone connector
- wires

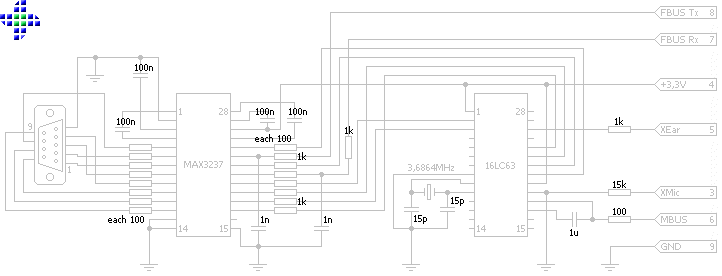

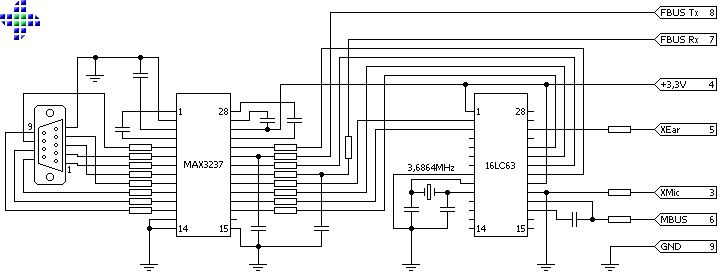

Shematics
